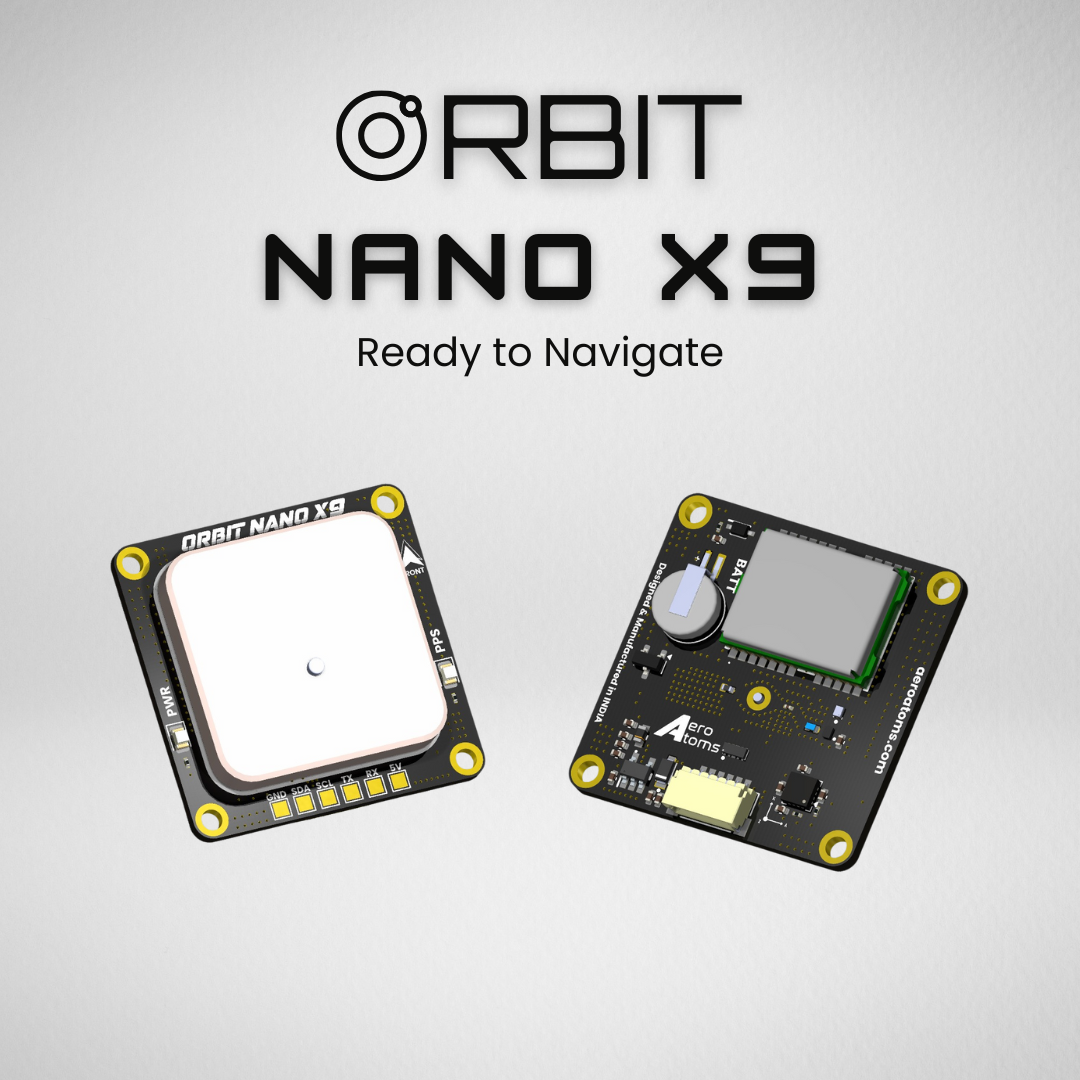

Orbit Nano X9
The ORBIT NANO X9 integrates the reliable u-blox NEO-M9N GNSS receiver and IST8310 magnetometer. This compact system provides multi-constellation GNSS capabilities with standard positioning accuracy, making it ideal for entry-level applications requiring reliable positioning in the smallest form factor. A multi-constellation antenna is included to ensure optimal signal reception across diverse environments.
Key Features
- Smallest Entry-Level GNSS: Ultra-compact form factor with comprehensive satellite support
- Integrated LNA + SAW Filter: Built-in low-noise amplifier and surface acoustic wave filter for enhanced signal gain and superior interference rejection
- Multi-Constellation Reception: Concurrent tracking of GPS, Galileo, BeiDou, and GLONASS signals
- GNSS Bands Support: L1C/A, L1OF, E1B/C, B1I
- Reliable Accuracy: Standard positioning with multi-constellation support
- Integrated Magnetometer: IST8310 3-axis digital compass for complete navigation solution
- UART Interface: Standard serial interface for universal compatibility
- Dual LED Status: Green LED for power status, Blue PPS LED for GPS lock indication
- High Update Rate: Navigation rate of up to 10 Hz for dynamic applications
- Enhanced Sensitivity: LNA amplification for improved weak signal performance
Magnetometer (IST8310)
| Parameter | Specification |
|---|---|
| Full Scale | ±1600 µT |
| Resolution | 0.3 µT |
| Output Data Rate | Up to 160 Hz |
| Operating Range | -40°C to +85°C |
